Inomax ACS880 Series 380V-690V 0.75KW-5000KW Variable Frequency Drive with 18 Months Warranty for Industrial Applications

Name: Inomax ACS880 Series 380V-690V 0.75KW-5000KW Variable Frequency Drive with 18 Months Warranty for Industrial Applications
Brand: Shenzhen Inomax Technology Co., Ltd.
SKU: ACS880
Price: 99 USD
Availability: InStock

Brand Name:	INOMAX
Model Number:	ACS880
MOQ:	1
Prijs:	$99

Detail Information

Productomschrijving

Detail Information

Plaats van herkomst:

Guangdong, China

Certificering:

Controlemodus:

DTC -besturing

Nominale spanning:

380 V tot 690 V

Vermogensfase:

3 fase

Nominale kracht:

0,75 kW-5000 kW

Uitgangstype:

3 fase AC

Beschermingsniveau:

IP 20

Vermogensbereik:

0,75 kW-5000 kW

Spanningsbereik:

220V-690V

Koppelrespons:

<5 ms

Snelheidsnauwkeurigheid:

<0,5%

Frequentiebereik:

0 ~ 1000Hz

Frequentieresolutie:

0,01 Hz

Input THDI:

<5%

Herhaalbaarheid van koppel:

Snelheidsreactie:

0,7%

Markeren:

380V-690V Variable Frequency Drive

0.75KW-5000KW VFD

18 Months Warranty Frequency Inverter

Productomschrijving

INOMAX ACS880 Series Regenerative Drive AFE Drive - Ideal Solution for Dynamometer Test Bench

Product Overview

Model Reference	ACS880 ABB Analog
Product Type	High Performance DTC Drive
Applications	Complex, Heavy Duty, Speed Control, Tension Control, Position Control, Lifting Control, DTC, STO, Direction Torque Control, Safe Torque Off
Power Range	0.75KW-5000KW
Voltage	220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V
Control Mode	DTC Control, Vector Control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 Months

ACS880 Key Advantages

Direct Torque Control technology equivalent to ABB
Compatible with any sine wave AC motor including IM/PM/SynRM/Servo motors
Four-quadrant inverter with energy feedback for energy savings and reduced harmonics

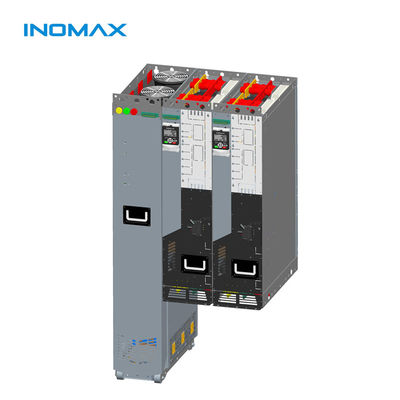

Supports Stack Type or Multi-drive modules configuration
380V-690V range from 0.75KW-5000KW
Built-in EMC filters, DC reactor and braking units
Supports multiple communication protocols: Budbus, Profibus, ProfiNET, EtherCAT, Ethernet
2x torque at zero speed without sensor control
Torque response time <5ms for sensorless applications
Speed loop dynamic response accuracy: 0.7%
Intelligent temperature-controlled fan for energy efficiency and extended lifespan

Industry Applications

The ACS880 with direct torque control and energy saving functions features four-quadrant energy regeneration and feedback, with built-in filters and reactors. Ideal for demanding applications in:

Steel production
Cement manufacturing
Chemical processing
Oil & Gas
Power generation
Minerals & Mining

Metallurgy Project Experience

Successfully implemented at Henan Yaxin Iron and Steel Plant's converter system, featuring:

360° continuous rotation with precise positioning
4x 90KW variable frequency motor drive system
Master/slave control for absolute synchronization
Fault-tolerant operation capability
Shock load and torsional vibration buffering

Mine Hoist Application

Selected by SIEMAG TECBERG group for shaft hoisting systems requiring:

Low harmonics (<3%)
High torque at low frequency
Precise speed control for safety operations

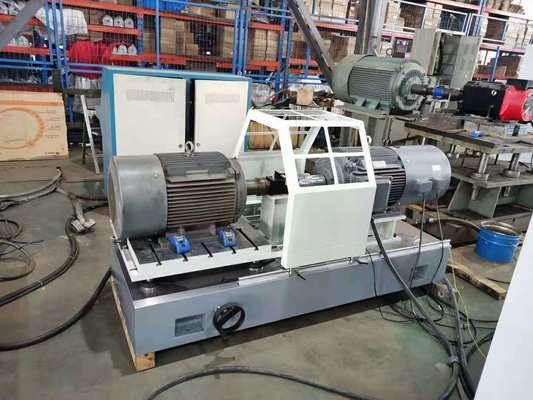

Motor Test Bench Solutions

Our regenerative drive system provides:

Stable DC bus voltage
Input THDi <5% with LCL filter
0-1000Hz frequency range
0.01Hz frequency resolution
<20ms open loop torque response

Product Specifications
